BESPOKE DIGITAL SIGNAGE SOLUTIONS – maDE IN BRITAIN

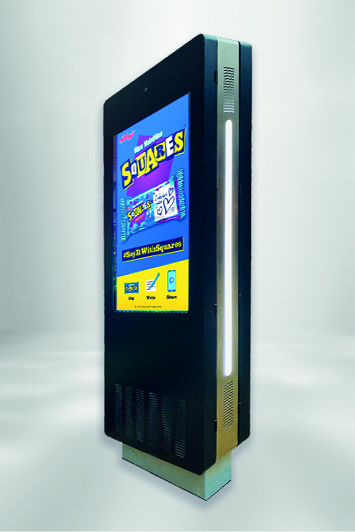

Our UK designed, and UK manufactured single or double-sided freestanding outdoor City Totem is built-to last!
Sleek, stylish and slim yet extremely robust our Retail Totem is fabricated with 304 Grade Stainless Steel body, 6mm laminated and toughened vandal-resistant glass.
The City Totem is built to withstand the elements and is IP65 rated against water and dust ingress and is anti-corrosion and rust resistant with a 5-year commercial warranty including 3-year hardware 3-day SLA on-site warranty.
With many intelligent features setting the Retail Totem apart from the competition such as thermostatically controlled active-cooling and air-filtration with powerful regulated rotary fans.
Added features like RGB LED light bars down both sides and grained powered coated paint and that little extra finish.
Main Features
55” & 75” Models
Incredibly sleek, stylish and slim yet extremely visible with a choice of
sizes; 55” & 75”, both with a high bright 3500Nit display. Designed to stand out in busy high street and commercial environments.
304 Stainless Steel Body & Grained Finish
Custom finish choice of RAL Colours or Stainless Steel. 5 YR – Anti-Rust and
Corrosion warranty, giving you peace of mind they will last the test of time.
LCD Air Curtain
Cross Blower Fan
Fans & Tangential Cross Blowers
provide an LCD Air-Curtain keeping
the hi-bright Display nice and cool for
the sunniest days.
UV Protected with 3M™ Sun Control Film
Tempered Glass is protected with 3M™ Sun Control film, which rejects up to 97% of sun’s infrared light and blocks up to 99.9% of harmful ultraviolet (UV) rays. Preventing Screen Blackening & Failure.
RCD Protected for Electrical Safety
All of our outdoor screen range are fitted with a 30mA RCD that protects users and equipment if an electrical fault was ever to occur. If an electrical fault was detected the switch will disconnect power within 40 NanoSeconds.
Custom RAL Painted
& Branded
All of our Outdoor Screen Enclosures are proudly Made in Britain, meaning we are able to keep lead times short and offer a bespoke service. We are able to custom fabricate based on requirements and powder coat our enclosures to your brand ral or finish.
Impact Resistant & Vandalism Safe
Protected by 6mm Laminated & Toughened Glass you can have peace of mind installing our Outdoor Screen Enclosures into public spaces.
3500NIT OEM High Bright Panel
Our Ultra High Bright OEM Panel boasts an impressive 3500nit Brightness that will always be sunlight readable whatever the location. You have peace of mind that the solution will last thanks to the 3 Year Warranty.
Optional Air Cooler Upgrade
Upgrade the City Totem with a Termotek Air Cooler for Hotter Climates. Compatible with both 55” and 75” models the air conditioning unit fits into the existing design, keeping internal temperatures stable and stopping component burn out.
Fully Guaranteed Solution
Fully backed by a Made In Britain manufacturer you can have peace of mind thanks to a 3 Year Warranty against mechanical or electrical failure and a further 5 Year Stainless Steel guarantee against rust and corrosion. UK remote technical support packages are also available.
Screen Specification
55"
| Size | 55″ | |
|---|---|---|
| Brightness (Cd / M2) | 2500 | |
| Panel Type | 24/7 Panel | |
| Resolution | 1920×1080 | |
| Contrast Ratio | 1200:1 | |
| Dynamic Constrast Ratio | 250000:1 | |
| Panel Life Time ( Min. ) | 50000 H | |
| Backlight Type | EDGE TYPE LED | |
| Panel Technology | IPS | |
| Viewing Angle | 178° | |
| Speaker Type | Stereo 2 X 10W, 8Ω | |
| Video | HDMI,VGA, DVI | |
| Audio | Audio Socket(3.5mm) | |
| Power Consumption (W) | 105 W | |
| Input Voltage | AC 100-240V, 50-60 Hz | |
| Unit Size (HxWxDmm) | 2375H x 900W x 350D X 217H Base | |
| Package Size(HxWxDmm) | Pallet Size VERTICAL DELIVERY | |
| Net Weight(kg) | 295 kg | |
| Gross Weight(kg) | 339 kg | |
| Operating Temperature | 0-40°C | |
| Storage Temperature | 0 °C to 50 °C | |
| Operating Humidity | -30°C to 60°C | |
| Storage Humidity | 10% to 80% | |
| Regulatory Approvals | CE, FCC, ROHS, HDMI |
75"
| Size | 75″ | |
|---|---|---|
| Brightness (Cd / M2) | 2500 | |
| Panel Type | 24/7 Panel | |
| Resolution | 1920×1080 | |
| Contrast Ratio | 1200:1 | |
| Dynamic Constrast Ratio | 250000:1 | |
| Panel Life Time ( Min. ) | 50000 H | |
| Backlight Type | EDGE TYPE LED | |
| Panel Technology | IPS | |
| Viewing Angle | 178° | |
| Speaker Type | Stereo 2 X 10W, 8Ω | |
| Video | HDMI,VGA, DVI | |
| Audio | Audio Socket(3.5mm) | |
| Power Consumption (W) | 721 W | |
| Input Voltage | AC 100-240V, 50-60 Hz | |
| Unit Size (HxWxDmm) | 2375H X 1395W x 350D x 217H Base | |
| Package Size(HxWxDmm) | Pallet Size VERTICAL DELIVERY | |
| Net Weight(kg) | 295 kg | |
| Gross Weight(kg) | 339 kg | |
| Operating Temperature | 0-40°C | |
| Storage Temperature | 0 °C to 50 °C | |
| Operating Humidity | -30°C to 60°C | |
| Storage Humidity | 10% to 80% | |
| Regulatory Approvals | CE, FCC, ROHS, HDMI |
