BESPOKE DIGITAL SIGNAGE SOLUTIONS – maDE IN BRITAIN

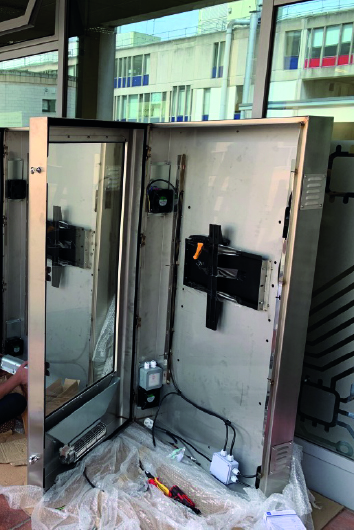

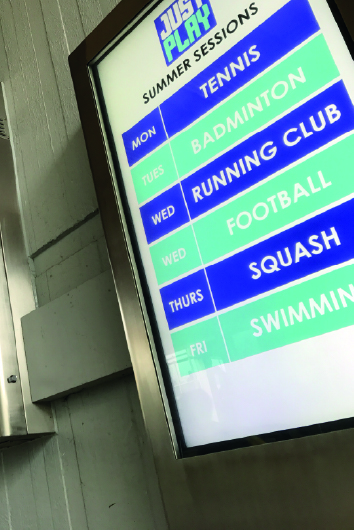

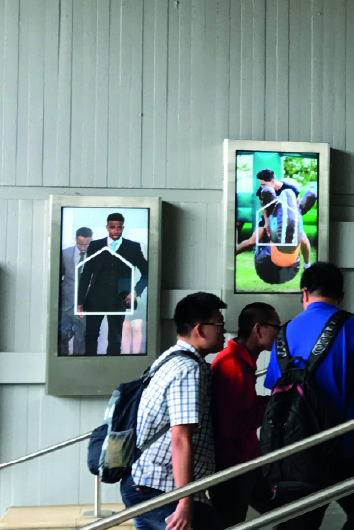

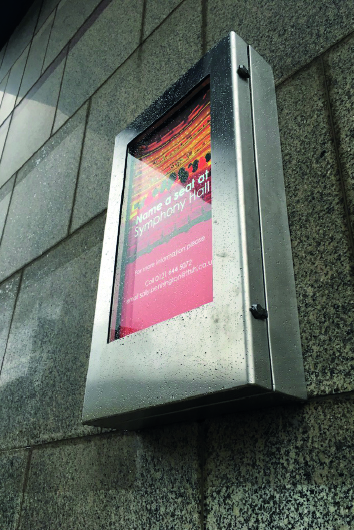

Our Made In Britain, IP65, Air-cooled Outdoor Screen enclosures are built-to withstand busy retail and commercial environments and really stand-out from the crowd.
We design & produce a large range of enclosures to fit 22′ to 75″ commercial High Brightness screen sizes, with a choice of wall mounting or freestanding, single-sided.
Fabricated with 304 Grade Stainless Steel body, 6mm laminated and toughened vandal-resistant glass.
Simply pick your enclosure and add one of our OEM screens & your choice of a digital signage player for a full solution.
We also offer a range of professional commercial E-LED & D-LED FHD/ UHD displays, which provide an impactful image quality, with many features such as SoC & Built-in on/off timers.
For piece of mind a 3-year commercial warranty is included and is designed to run problem free 24/7. Content can be updated easily via Plug & Play (USB) feature via the built-in SoC player which is built-in to the display screen or via ONE our Add-ons; W10 or Android cloud-based content management systems; Spec details & POA.
Main Features
22” – 75” Models
Custom built to suit any screen type, model or size from 22” – 75”, and larger on custom request. With a modular design we can manufacture fully IP65 solutions to suit customers needs & requirements.
Standard Finish
304 Stainless Steel
Built with a premium stainless-steel finish, our outdoor screen enclosures come with a 5 YR – Anti-Rust and Corrosion warranty, giving you piece of mind, they will last the test of time.
LCD Air Curtain
Cross Blower Fan
Fans & Tangential Cross Blowers provide an LCD Air-Curtain keeping the hi-bright Display nice and cool for the sunniest days.
UV Protected
Tempered Glass is protected with 3M™ Sun Control Film this rejects up to 97% of sun’s infrared light and blocks up to 99.9% of harmful ultraviolet (UV) rays. Preventing Screen Blackening & Failure.
RCD Protected
All of our outdoor screen enclosures are fitted with a 30mA RCD that protects users and equiptment if an electrical fault was ever to occur. If an electrical fault was detected the switch will disconnect power within 40 NanoSeconds.
Custom RAL Power Coat
& Finish
We are able to custom fabricate based on requirements and powder coat our enclosures to your brand RAL or finish.
Impact Resistant &
Vandalism Safe
Protected by 6mm Laminated & Toughened Glass you can have peace of mind installing our Outdoor Screen Enclosures into public spaces.
Screen Specification
55"
| Size | 55″ | |
|---|---|---|
| Brightness (Cd / M2) | 2500 | |
| Panel Type | 24/7 Panel | |
| Resolution | 1920×1080 | |
| Contrast Ratio | 1200:1 | |
| Dynamic Constrast Ratio | 250000:1 | |
| Panel Life Time ( Min. ) | 50000 H | |
| Backlight Type | EDGE TYPE LED | |
| Panel Technology | IPS | |
| Viewing Angle | 178° | |
| Speaker Type | Stereo 2 X 10W, 8Ω | |
| Video | HDMI,VGA, DVI | |
| Audio | Audio Socket(3.5mm) | |
| Power Consumption (W) | 105 W | |
| Input Voltage | AC 100-240V, 50-60 Hz | |
| Unit Size (HxWxDmm) | 1640 x 900 x 236 | |
| Package Size(HxWxDmm) | Pallet Size VERTICAL DELIVERY | |
| Net Weight(kg) | 265 kg | |
| Gross Weight(kg) | 305 kg | |
| Operating Temperature | 0-40°C | |
| Storage Temperature | 0 °C to 50 °C | |
| Operating Humidity | -30°C to 60°C | |
| Storage Humidity | 10% to 80% | |
| Regulatory Approvals | CE, FCC, ROHS, HDMI |
75"
| Size | 75″ | |
|---|---|---|
| Brightness (Cd / M2) | 2500 | |
| Panel Type | 24/7 Panel | |
| Resolution | 1920×1080 | |
| Contrast Ratio | 1200:1 | |
| Dynamic Constrast Ratio | 250000:1 | |
| Panel Life Time ( Min. ) | 50000 H | |
| Backlight Type | EDGE TYPE LED | |
| Panel Technology | IPS | |
| Viewing Angle | 178° | |
| Speaker Type | Stereo 2 X 10W, 8Ω | |
| Video | HDMI,VGA, DVI | |
| Audio | Audio Socket(3.5mm) | |
| Power Consumption (W) | 721 W | |
| Input Voltage | AC 100-240V, 50-60 Hz | |
| Unit Size (HxWxDmm) | 1890 X 1180 x 286 | |
| Package Size(HxWxDmm) | 1948 x 210 x 1170 mm | |
| Net Weight(kg) | 295 kg | |
| Gross Weight(kg) | 339 kg | |
| Operating Temperature | 0-40°C | |
| Storage Temperature | 0 °C to 50 °C | |
| Operating Humidity | -30°C to 60°C | |
| Storage Humidity | 10% to 80% | |
| Regulatory Approvals | CE, FCC, ROHS, HDMI |
